Smarthon Series

Sensors and Actuators

Build and play smart electronics with models easily

AIoT series modules

series all.jpg

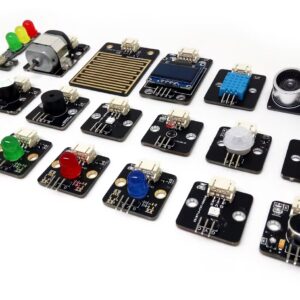

50+ Electronic Modules



Mix and match the electronic modules any way you want.

All functionalities as you needed.

Abstract Architecture
m4 screws.jpg
m4 hole.jpg

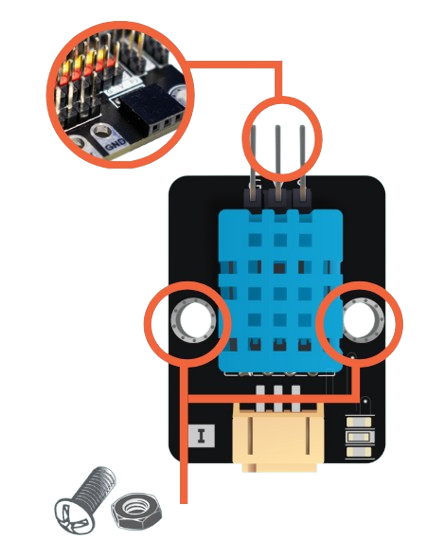

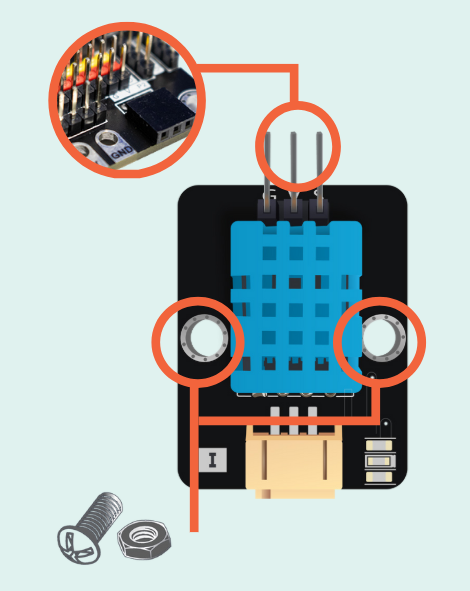

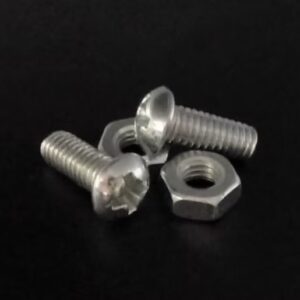

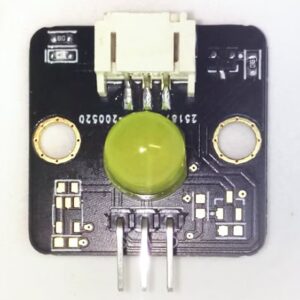

Support M4 Holes



  • Standard hole size for fastening to mechanical parts

  • Install the modules on a model easily

  • No need to use any binding materials anymore

  • Great products final look

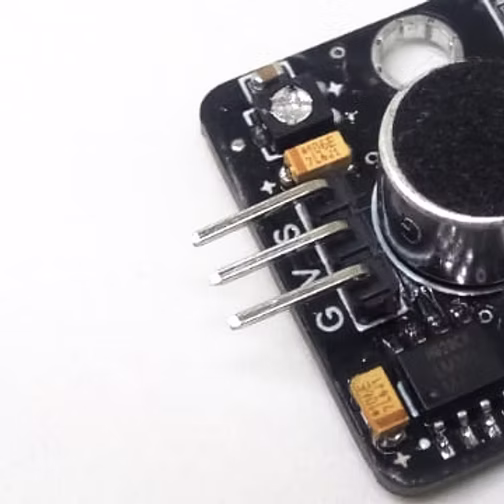

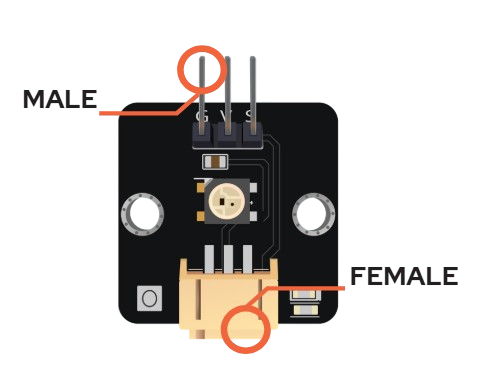

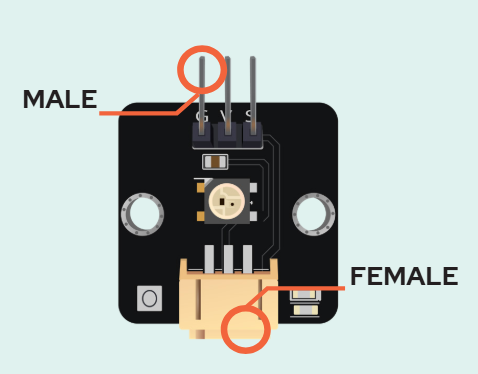

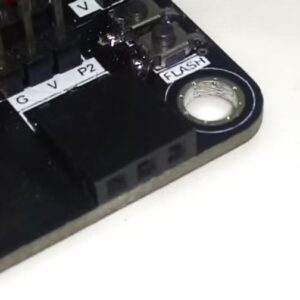

Support Both Direct Plug-in and External Wiring



  • All sensors and actuators are in 3 or 4 pins

  • Get your modules tested on the board immediately and easily

  • Direct combination of various modules

3 pins.jpg
3 pin.jpg
Abstract Architecture
extension wires.jpg
extension connect.jpg

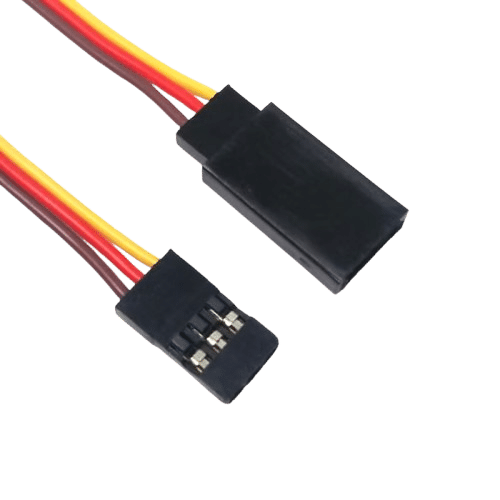

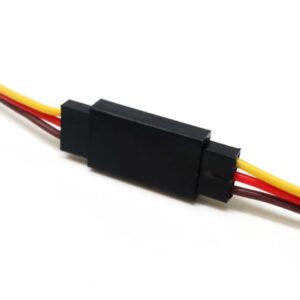

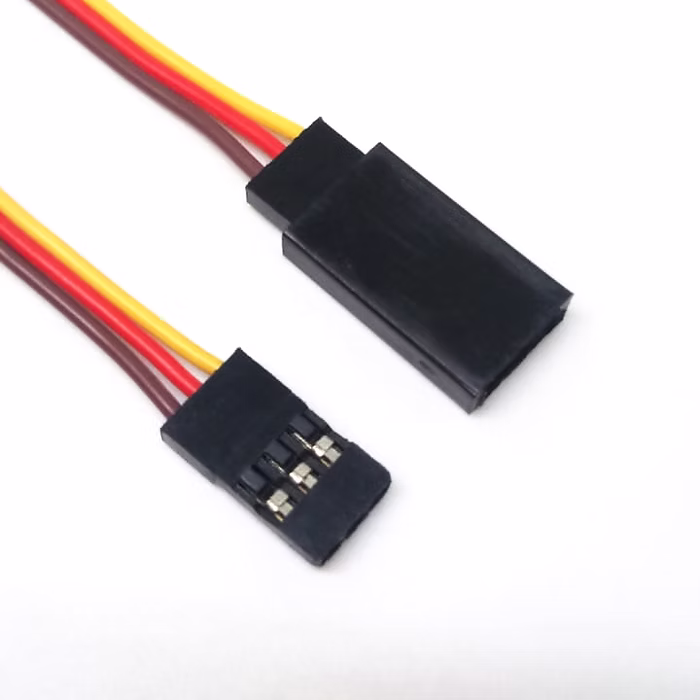

Extension Wire



  • Easily extent the wiring

  • No need any other generic Dupont wire

  • Fit for building model

  • Focus on model building, design, and coding

  • Compatible with any 3 pin and 4 pin type of modules

Standard Colors for SVG

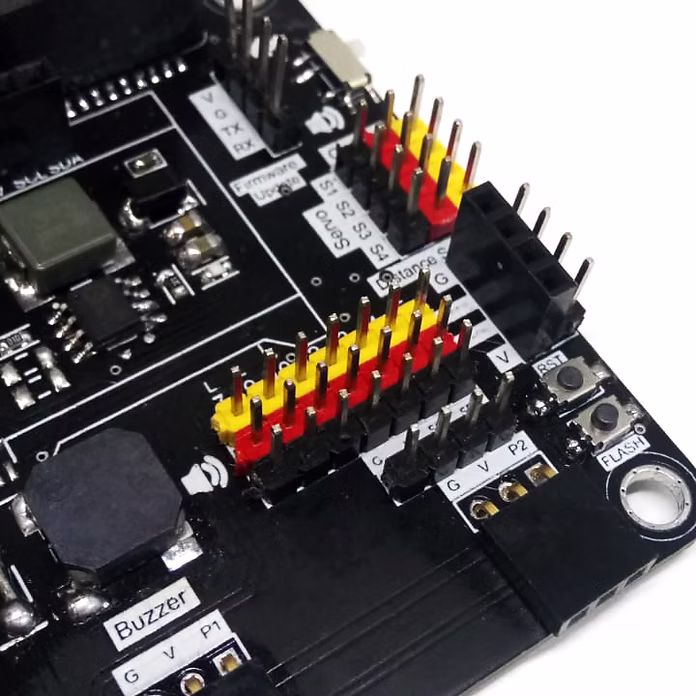

  • All sensors and actuators: Signal, voltage, ground (yellow, red, black)

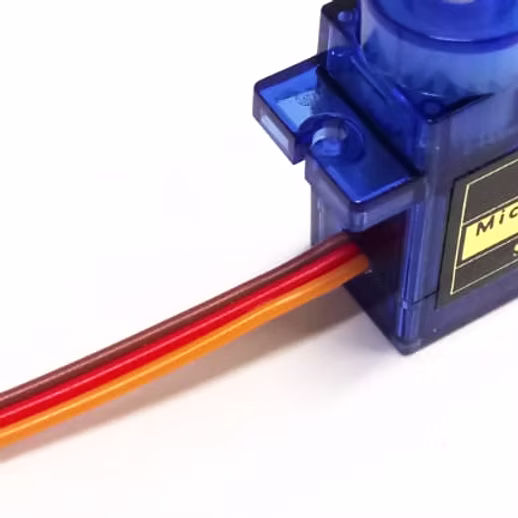

  • All servo: Signal, voltage, ground (orange, red, brown)

  • Easy to learn electronics pin

orange red brown.jpg
black red yellow.jpg
Abstract Architecture

Fit models well

Smart house kit_visual.png

Smarthon Smart House Kit

plant kit png.png

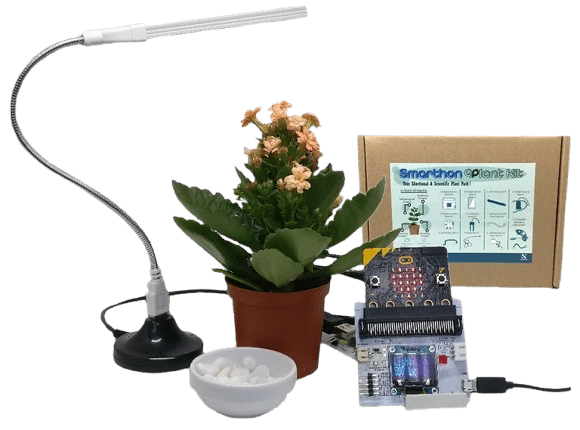

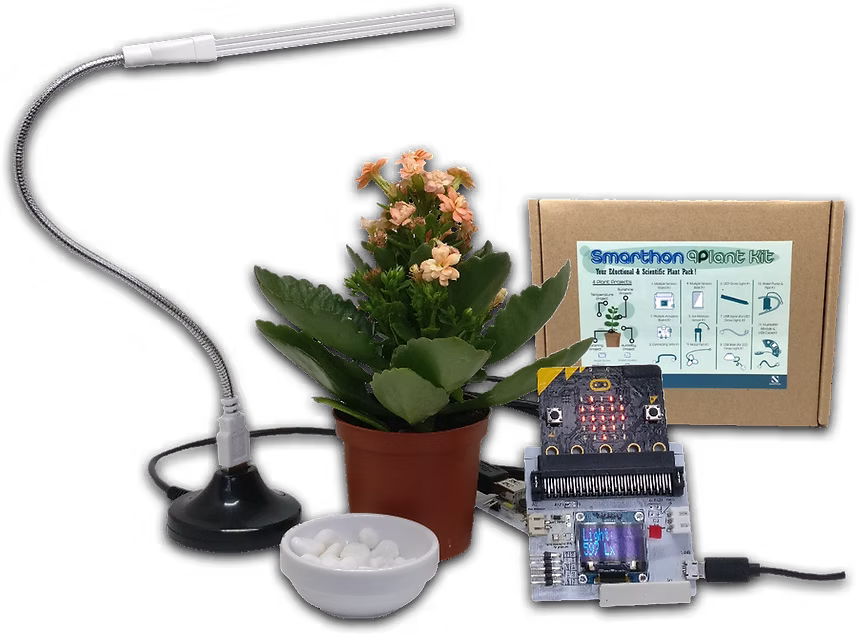

Smarthon Smart Plant Kit

Picture 3.png

Smarthon Smart City Kit

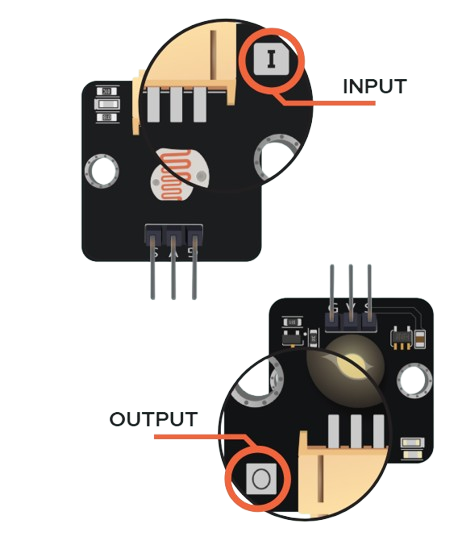

Electronic Modules

Input Modules

No
Name
Description
Specifications
SMSA01
Button
SMSA02
Dimmer
SMSA10
Light Sensor
SMSA11
Motion Sensor
SMSA12
Temperature and Humidity Sensor
SMSA13
Ultrasonic Distance Sensor
SMSA14
Rain Drop Sensor
SMSA17
Sound Sensor
SMSA21
Towngas Sensor
SMSA22
Flame Sensor
SMSA24
Digital Light Sensor
SMSA25
BME280
SMSA27
TMP36
SMSA28
NTC

Output Modules

No
Name
Description
Specifications
SMSA03
Red LED
SMSA04
Green LED
SMSA05
Yellow LED
SMSA06
White LED
SMSA07
Blue LED
SMSA08
Mono-tone Buzzer
SMSA09
Musical Buzzer
SMSA15
Motor
SMSA16
WS2812
SMSA18
Traffic Light
SMSA19
OLED Module
SMSA23
Colorful Light
SMSA26
Fog Module
SMSA29
Water Pump
